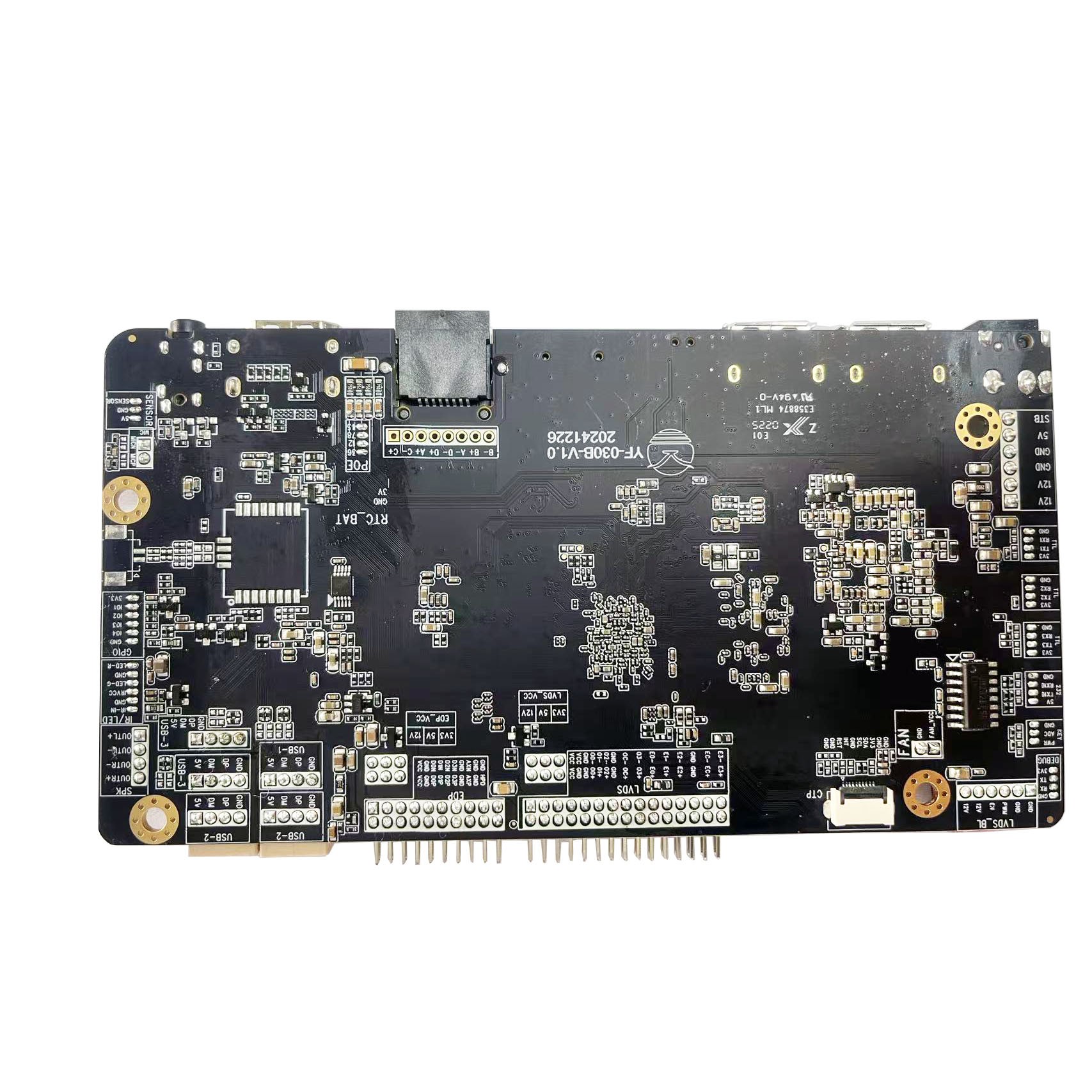

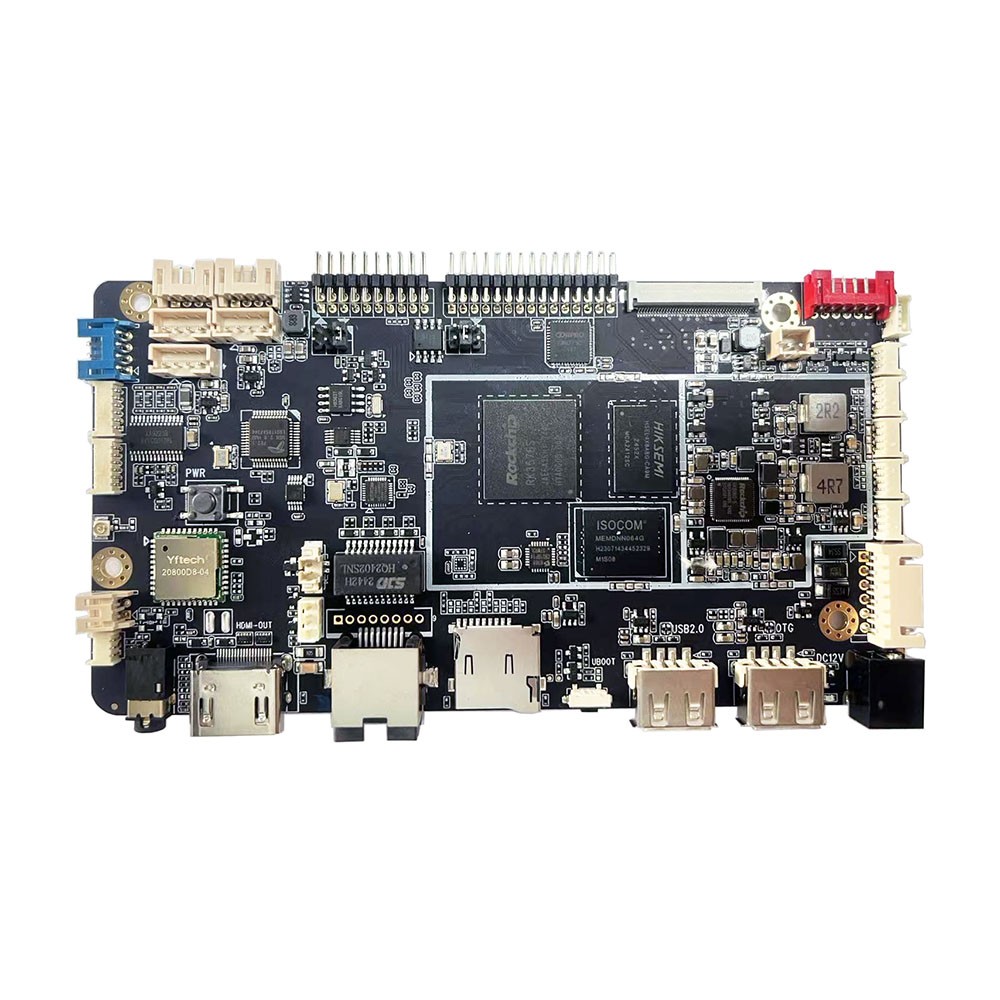

The YF-030B board uses Rockchip RK3576S 8-core 64-bit with a large and small core architecture (4xA72+4Xa53) with a main frequency of up to 2.1GHz and high performance, equipped with Android14.0 system; built-in 3TOPS computing power AI accelerator NPU supports mixed operations such as INT4/INT8/INT16;/4K60fps decoding. Integrates multi-channel LCD driver MIPI, LVDS, eDP/HDMI (choose one of the two), Ethernet, WIFI, BT5.0 amplifier in one, supporting most of the current popular video and picture format decoding.
Wide application support;
Computer vision: can be used for image recognition, target detection, face recognition and other tasks. In the field of security monitoring, it can quickly and accurately identify targets such as people and vehicles; in autonomous driving, it can perceive and analyze the road environment in real time; in medical image analysis, it helps doctors diagnose diseases more accurately
Natural language processing: It can accelerate tasks such as text classification, sentiment analysis, and machine translation, greatly improving the efficiency of processing large-scale text data.
1.2: Key Features
◆ High integration. Integrates USB/Gigabit Ethernet/WIFI/BT5.0/MIPI/microphone and other functions to simplify the overall design and make it more beautiful.
◆ High-definition 4K60fps video decoding and various MIPI signals/LVDS/eDP, LCD display.
◆ Built-in amplifier. Supports dual-channel 8R/5W amplifier.

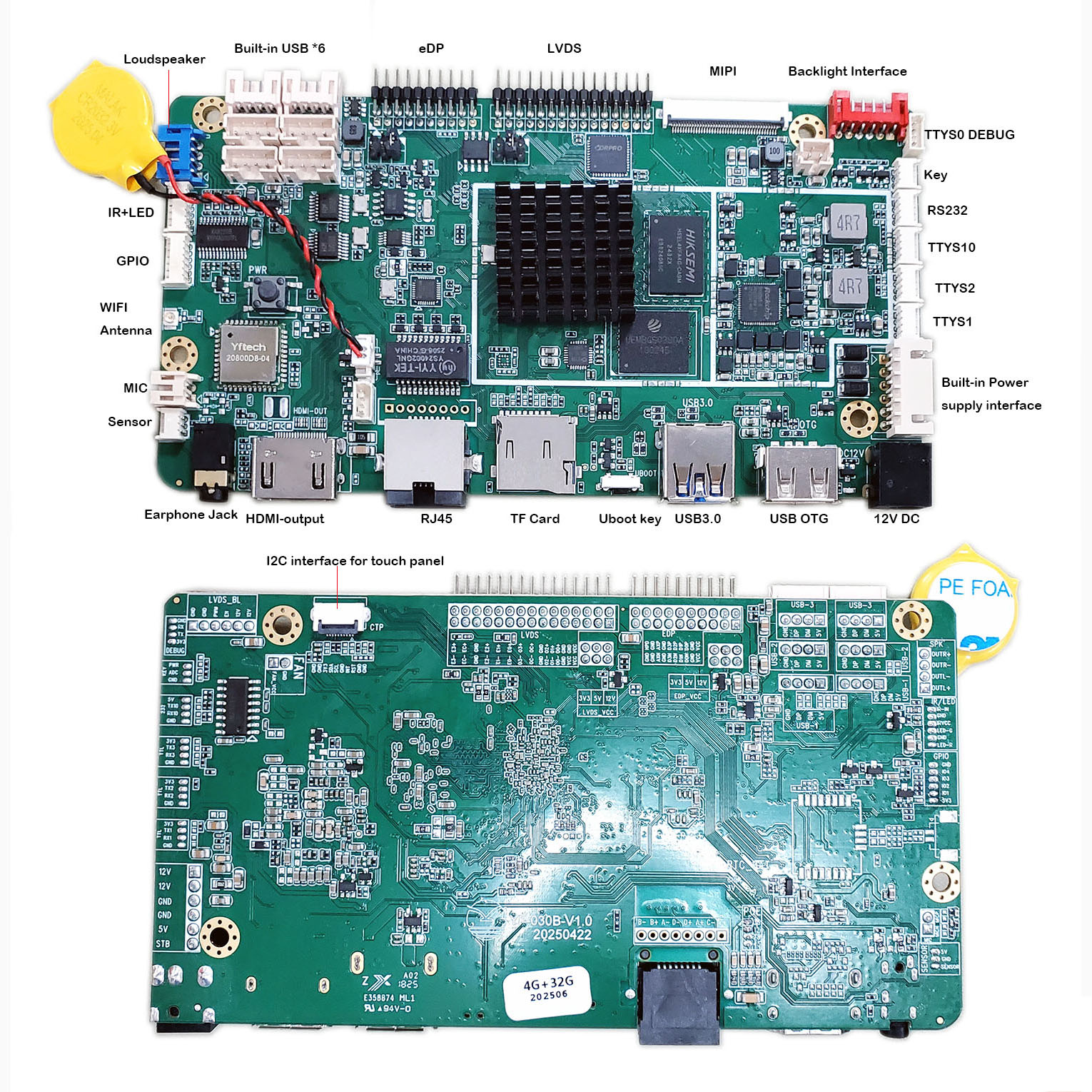

◆ Rich interfaces, supports USB/serial port/GPIO/ADC interface expansion, and can meet the mainstream peripherals on the market.
◆ Fully functional. Supports horizontal and vertical screen playback, video split screen, scrolling subtitles, timer Switch, USB data import and other functions.
◆ Convenient management: Humanized playlist making software, convenient for advertising playback management and control. Play log, easy to understand the playback situation
Part 2
Hardware Specification | |
CPU | Rockchip RK3576 UP to 2.2GHz； |
GPU | ARM Mali-G52 MC3 GPU |
NPU | 6T |
RAM | Standard 4G LPDDR4/4X |
ROM | EMMC32G/64/128/256G(optional)label 32G |
Decoding resolution | 4K@120fps H.265/H.264/AV1/VP9/AVS2 decoding and 4K@30fps H.264/H.265 encoding |
O.S | Android14.0 |
Play Mode | Supports multiple playback modes such as loop, timing, and insert playback |
Network | Gigabit Ethernet, support WiFi/BT5.0, wireless peripheral expansion |
USB2.0 | 5 built-in USB |
USB 2.0 | 1 standard USB port |
USB 3.0 | 1 standard USB3.0 port |
Ethernet | 1, 100/1000M Ethernet |
HDMI-IN | UP to 3840*2160 |
LVDS | UP to 1920*1080 |
eDP | UP to 3840*2160 |
MIPI | Up to 2560*1440 | ||
Audio output | Left and right channel output 8R/5W speakers | ||
RTC | Support | ||
Hardware watch-dog | Support | ||
Timer switch | Support | ||
Serial port | 3 X TTL，1 X Debug，1 X RS232 |
